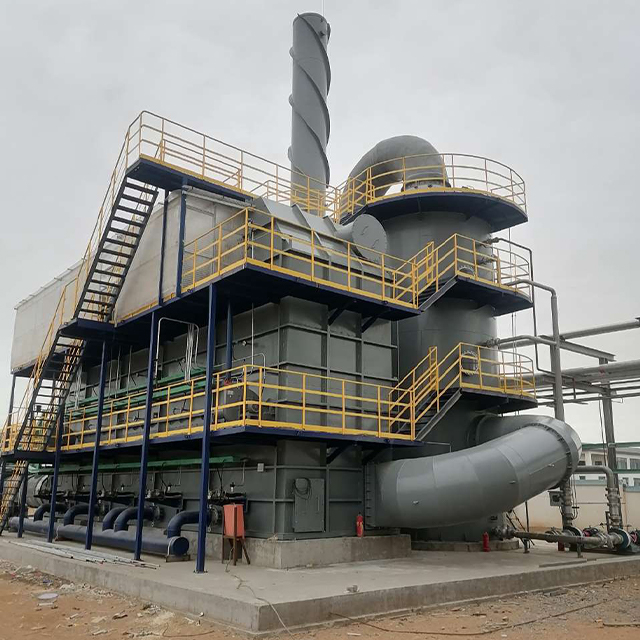

Waste Gas Incinerator
Baimaoyuan
Product Information:
The waste gas of this project is the solid slag salt containing organic matter in the previous process, which is gasified by the roasting furnace and introduced into the combustion chamber. The combustion chamber adopts a square structure at the bottom and a circular structure at the top. Multiple waste gases are introduced into the lower part of the combustion chamber at the same time. The waste gas generated by the previous process is incinerated again at high temperature (1100℃) in the combustion chamber to ensure the removal efficiency of organic matter. The model is selected according to the use temperature ≥1100℃ and the flue gas residence time ≥2 seconds. The high-temperature purified gas contains a large amount of heat that can be recycled. The high-temperature flue gas of this project uses a membrane wall waste heat boiler to recover heat energy.
Product Features:
1. Direct high-temperature oxidation combustion uses high temperature to decompose harmful components in the exhaust gas into CO2 and H2O, and the organic gas decomposition rate is high;
2. The heat energy recovery efficiency is high, and hot water, steam, hot air, thermal oil, etc. can be recovered;
3. Equipped with low-nitrogen exhaust gas burner and multi-stage fire-retardant to prevent and control backfire;
4. The incineration efficiency is high, there is no secondary pollution and the generation of dioxin can be well controlled to ensure that environmental protection emissions meet standards;
Scope of application:
Only suitable for treating high-concentration organic gases or organic gases with high calorific value;
Air volume ≤ 10000Nm3/h, concentration ≥ 5000ppm VOCs, high treatment efficiency.
Key attributes:Other attributes
Applicable Industries:Manufacturing Plant, Machinery Repair Shops, Energy & Mining
Showroom Location:None
Provided Video outgoing-inspection
Provided Machinery Test Report
Marketing Type:Ordinary Product
Warranty of core components:1 Year
Core Components:PLC, Motor, Gearbox
Place of Origin:China
Warranty:1 Year
Weight (KG):30000 kg
