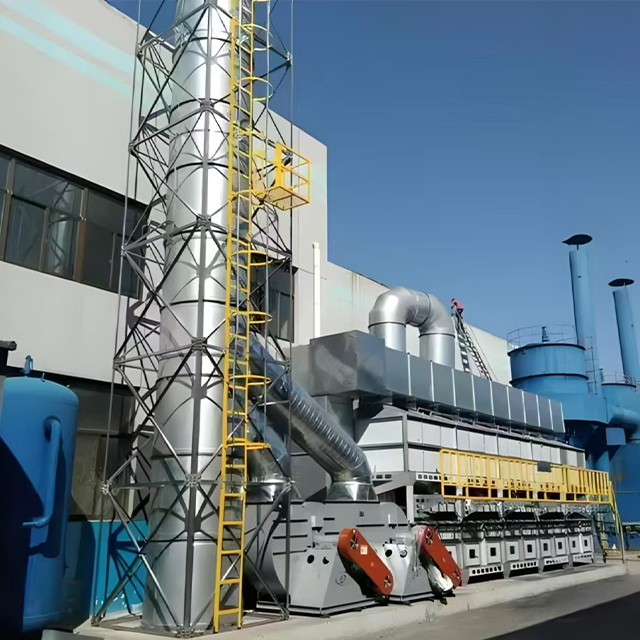

Waste Gas Catalytic Incinerator
Baimaoyuan
Product Information:
Exhaust gas catalytic incinerator is a catalytic incineration device used for organic waste gas purification: suitable for waste gas treatment in industries such as petrochemicals, pesticides, printing, and coatings. It is suitable for the purification of large-volume organic waste gases, with low operating costs, and fully considers the heat recovery of waste gas combustion and the service life of the equipment. The catalytic combustion method is to oxidize the organic pollutants in the waste gas into dihydrogen carbon and water at a lower temperature under the action of catalysts such as platinum and palladium.
Product Features:
1. High purification efficiency, ensuring that the exhaust meets environmental emission standards;
2. Flameless combustion is carried out, and multiple facilities are set up to ensure the operation of the equipment;
3. Low ignition temperature, high heat exchange and heating efficiency, low energy consumption, and low operating cost;
4. The equipment layout is compact, and the small footprint saves civil engineering and installation costs, and is convenient for operation and maintenance management;
5. A very complete waste heat recovery system is adopted, which can recover waste heat, does not require any fuel in the normal production process, and can generate superheated high-temperature steam, which has significant economic benefits;
6. A rectangular catalytic reactor is used to facilitate the loading of the catalyst, and it is easy to replace, install and maintain;
7. Targeted use of imported palladium and platinum stainless steel metal honeycomb catalysts, which have high activity, good high-temperature stability (temperature can reach 730℃), high mechanical strength,
long service life (up to 4-5 years), low resistance pressure, easy cleaning and wide adaptability;
8. Low ignition temperature, catalytic ignition temperature: 230~370℃, saving energy.
Scope of application:
Catalytic combustion can treat almost all hydrocarbon organic waste gases and malodorous gases, that is, it is suitable for treating various organic waste gases with a wide concentration range and complex components. For low-concentration, multi-component, and non-recyclable waste gases emitted by industries such as organic chemicals, coatings, and insulating materials, the catalytic combustion method has a good treatment effect.
Other attributes:
Applicable Industries:Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Showroom Location:None
Provided Video outgoing-inspection
Provided Machinery Test Report
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Pressure vessel, Pump, Engine, FAN
Place of Origin:Jiangsu, China
Warranty:1 Year
Weight (KG):1000 kg
Condition:New
Brand Name:BAIMAOYUAN
Purify Efficiency:99%
Purify Efficiency:≥99%
Emissions:400mg/m3~5000mg/m3
Model:NMHC≤50mg/m3
three-bed RTO system purification rate:More than 99%
Certification:SG S, ISO9001, ISO14001
Thermal Efficiency:≥99%
Volume flow:5000 ~ 100000 Nm3 / h
Value:Complex(no recycling value, difficult to use again)
Material content:Dust, nitrogen oxides, SO2
Function:Waste gas treatment
Packaging and delivery:
Selling Units:Single item
Single package size:18000X10000X14000 cm
Single gross weight:800.000 kg
