Product Information:

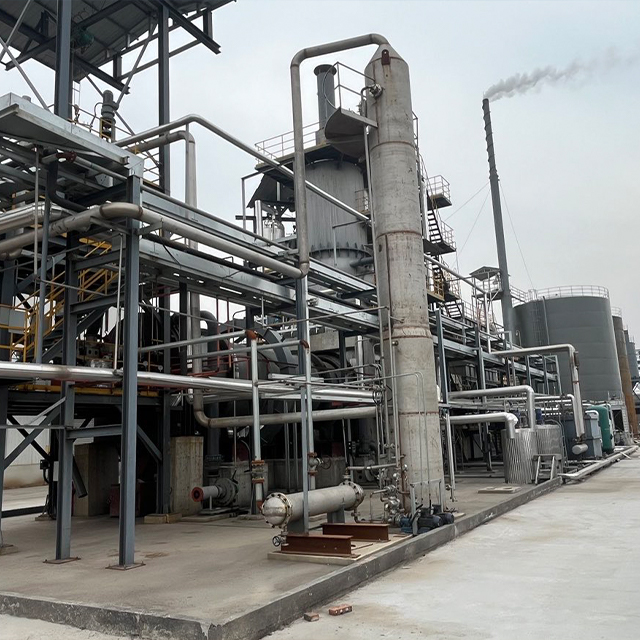

Waste liquid incinerator is a kind of equipment specially used for incinerating liquid waste, mainly used for treating organic hazardous waste liquid. These waste liquids are oxidized into carbon dioxide and water through a controllable high-temperature chemical reaction process in the combustion chamber of the incinerator, thereby achieving environmentally friendly emission standards. The working principle is to atomize the liquid waste to be incinerated into fine droplets through a nozzle, and then burn it in a suspended state in the high-temperature flame area. Use a swirl or direct current burner to ensure that the waste liquid droplets are well mixed with the combustion air, increase the residence time, and make the waste liquid fully burn in the high-temperature area. The general combustion chamber residence time is 0.3 to 2.0 seconds, and the maximum temperature can reach 1650℃.
Product Features:
1. The tangential atomization device - internal mixing two-fluid atomizer is used, which has high mixing degree, atomization effect, combustion speed and efficiency, low excess air coefficient, and can save a lot of fuel; the atomization nozzle has a large caliber, and does not require high viscosity and impurity content of the fluid, and is not easy to clog; the low-pressure spray method is adopted, which is not easy to wear, not easy to fail, and has good combustion effect. The atomization medium can use low-pressure steam or air;
2. The low-nitrogen combustion technology uses an atomization spray gun, which has a high mixing degree and combustion rate;
3. The vortex design has a combustion time of more than 2 seconds, and there is no dead angle in the combustion;
4. Waste liquid, waste water, and waste oil can be treated at the same time, and waste is treated with waste. The operating cost is low and the waste heat utilization value is high;
5. The wastewater incinerator can treat organic waste gas and a small amount of solid waste while treating wastewater.
Scope of application:
High concentration BOD, COD organic wastewater, chemical waste liquid, organic waste liquid, waste acid, waste alkali, etc.
